Please send RFQ , we will respond immediately.

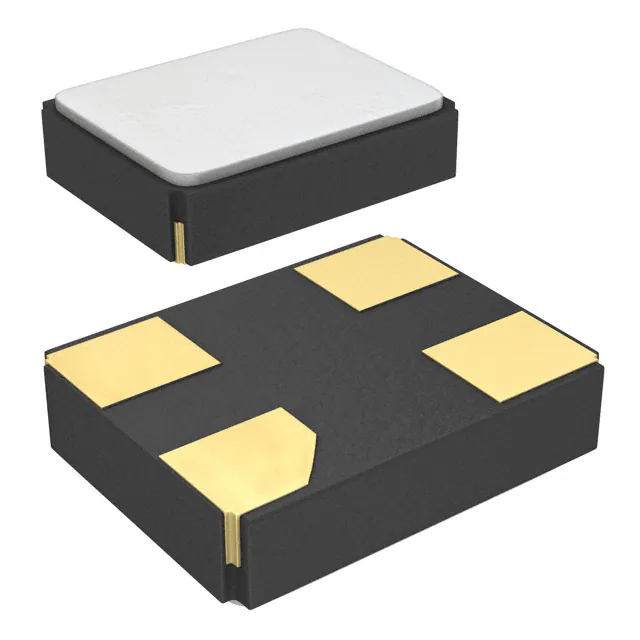

| Part Number | CX3225SB25000H0FLJCC | CX3225SB27000H0FLJCC | CX3225SB26000H0FLJCC | CX3225SB20000H0FLJCC | CX3225SB24000H0FLJCC | CX3225SB25000D0FLJCC |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 25 MHz | 27 MHz | 26 MHz | 20 MHz | 24 MHz | 25 MHz |
| Frequency Stability | ±15ppm | ±15ppm | ±15ppm | ±15ppm | ±15ppm | ±15ppm |
| Frequency Tolerance | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm |
| Load Capacitance | 12pF | 12pF | 12pF | 12pF | 12pF | 8pF |
| ESR (Equivalent Series Resistance) | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Ratings | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
