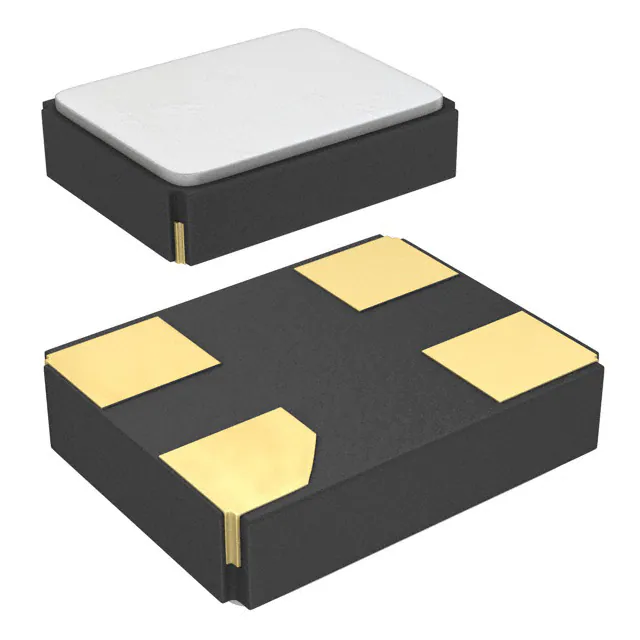

| Part Number | CX3225SB16000D0FLJCC | CX3225SB26000D0FLJCC | CX3225SB16000H0FLJCC | CX3225SB12000D0FLJCC | CX3225SB16000D0FFJCC |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 16 MHz | 26 MHz | 16 MHz | 12 MHz | 16 MHz |
| Frequency Stability | ±15ppm | ±15ppm | ±15ppm | ±15ppm | ±15ppm |
| Frequency Tolerance | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm |
| Load Capacitance | 8pF | 8pF | 12pF | 8pF | 8pF |
| ESR (Equivalent Series Resistance) | 80 Ohms | 50 Ohms | 80 Ohms | 150 Ohms | 80 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
