Please send RFQ , we will respond immediately.

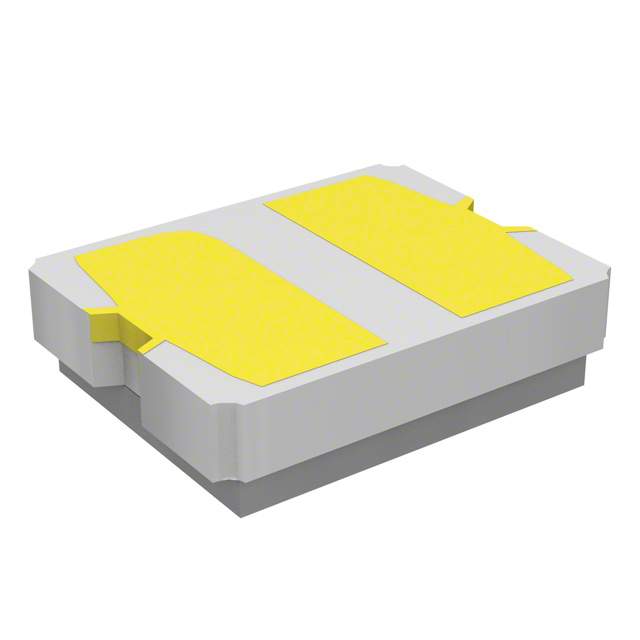

| Part Number | CX3225GA20000D0PTVCC | CX3225GA24000D0PTVCC | CX3225GA25000D0PTVCC | CX3225GA26000D0PTVCC | CX3225GA27000D0PTVCC | CX3225GA30000D0PTVCC | CX3225GA40000D0PTVCC |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 20 MHz | 24 MHz | 25 MHz | 26 MHz | 27 MHz | 30 MHz | 40 MHz |
| Frequency Stability | ±150ppm | ±150ppm | ±150ppm | ±150ppm | ±150ppm | ±150ppm | ±150ppm |
| Frequency Tolerance | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Load Capacitance | 8pF | 8pF | 8pF | 8pF | 8pF | 8pF | 8pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
