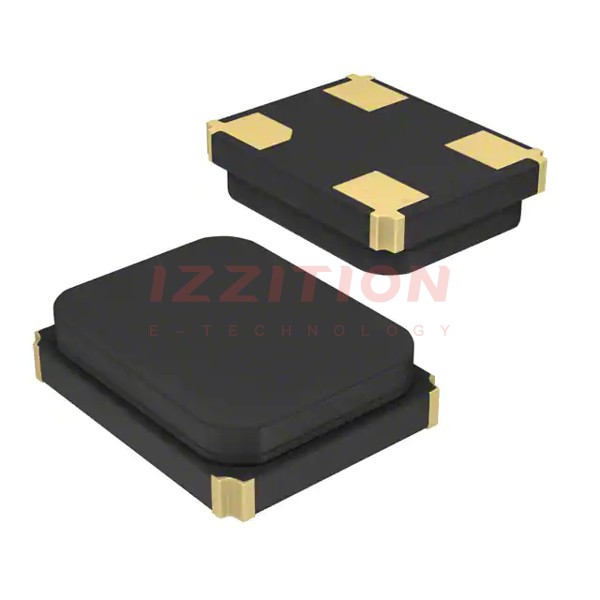

| Part Number | CX3225CA10000D0HSSZ1 | CX3225CA12000D0HSSZ1 | CX3225CA16000D0HSSZ1 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 10 MHz | 12 MHz | 16 MHz |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | 8pF | 8pF | 8pF |
| ESR (Equivalent Series Resistance) | 500 Ohms | 300 Ohms | 100 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
