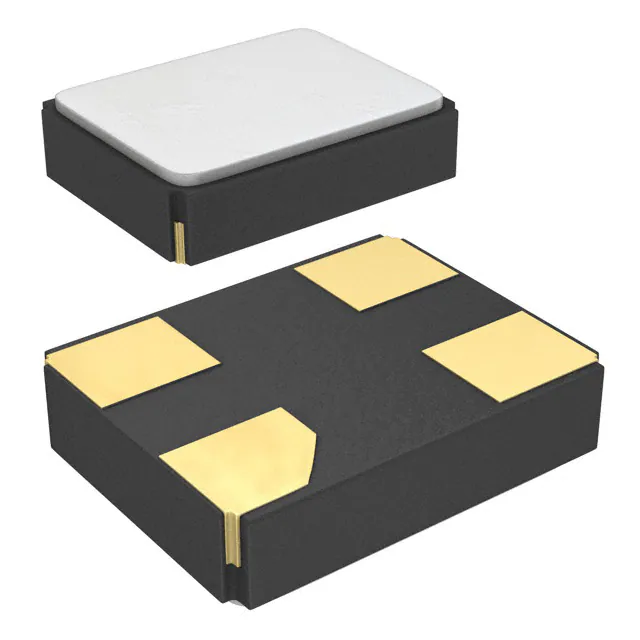

| Part Number | CX2016DB26000D0GPSC1 | CX2016DB27000D0GPSC1 | CX2016DB16000D0GPSC1 | CX2016DB20000D0GPSC1 | CX2016DB25000D0GPSC1 |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 26 MHz | 27 MHz | 16 MHz | 20 MHz | 25 MHz |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Frequency Tolerance | ±15ppm | ±15ppm | ±15ppm | ±15ppm | ±15ppm |
| Load Capacitance | 8pF | 8pF | 8pF | 8pF | 8pF |
| ESR (Equivalent Series Resistance) | 60 Ohms | 60 Ohms | 200 Ohms | 150 Ohms | 150 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
