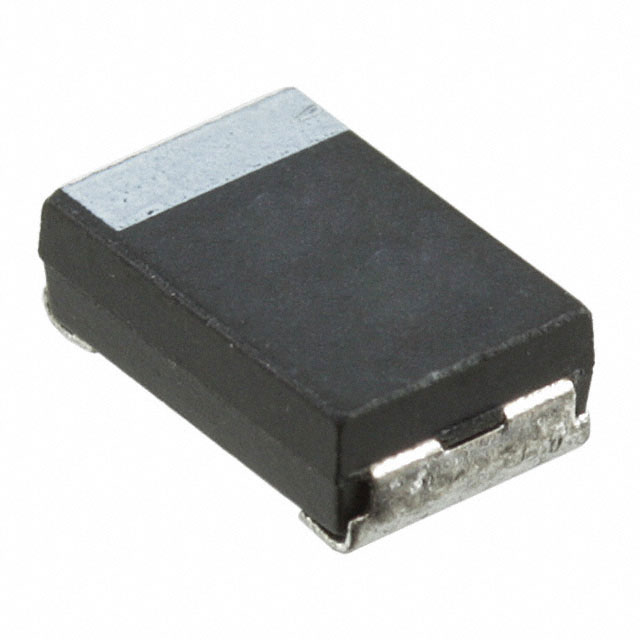

| Part Number | CWR29KB475KCFC | CWR29KC475KCFC | CWR29KB475JCFC |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage - Rated | 25 V | 25 V | 25 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 700mOhm | 700mOhm | 700mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2214 (5634 Metric) | 2214 (5634 Metric) | 2214 (5634 Metric) |
| Size / Dimension | 0.220" L x 0.135" W (5.59mm x 3.43mm) | 0.220" L x 0.135" W (5.59mm x 3.43mm) | 0.220" L x 0.135" W (5.59mm x 3.43mm) |
| Height - Seated (Max) | 0.085" (2.16mm) | 0.085" (2.16mm) | 0.085" (2.16mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | F | F | F |
| Ratings | - | - | - |
| Features | High Reliability | High Reliability | High Reliability |
| Failure Rate | C (0.01%) | C (0.01%) | C (0.01%) |
