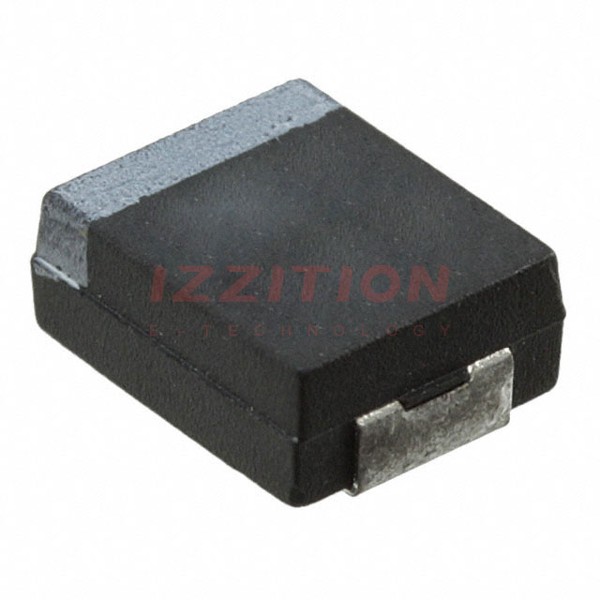

| Part Number | CWR29FC157KCXC | CWR29FC157JCXC | CWR29FC157KCXB |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 150 µF | 150 µF | 150 µF |
| Tolerance | ±10% | ±5% | ±10% |
| Voltage - Rated | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 65mOhm | 65mOhm | 65mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2721 (6954 Metric) | 2721 (6954 Metric) | 2721 (6954 Metric) |
| Size / Dimension | 0.273" L x 0.213" W (6.93mm x 5.41mm) | 0.273" L x 0.213" W (6.93mm x 5.41mm) | 0.273" L x 0.213" W (6.93mm x 5.41mm) |
| Height - Seated (Max) | 0.108" (2.74mm) | 0.108" (2.74mm) | 0.108" (2.74mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | X | X | X |
| Ratings | - | - | - |
| Features | High Reliability | High Reliability | High Reliability |
| Failure Rate | C (0.01%) | C (0.01%) | C (0.01%) |
