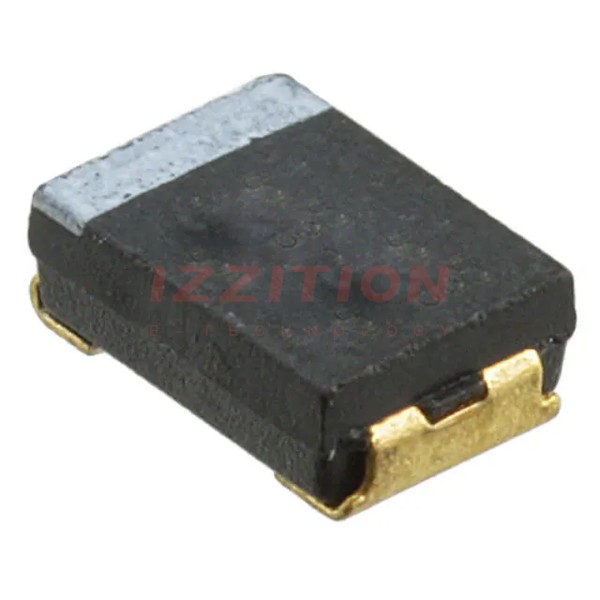

| Part Number | CWR09MC105KB | CWR09NC105KB | CWR09MC105KC | CWR09FC105KB |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KEMET | KYOCERA AVX | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 35 V | 50 V | 35 V | 10 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 6.5Ohm | 6Ohm | 6.5Ohm | 10Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1510 (3825 Metric) | 2010 (5025 Metric) | 1510 (3825 Metric) | 1005 (2512 Metric) |
| Size / Dimension | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.100" L x 0.050" W (2.54mm x 1.27mm) |
| Height - Seated (Max) | 0.065" (1.65mm) | 0.065" (1.65mm) | 0.065" (1.65mm) | 0.065" (1.65mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | D | E | D | A |
| Ratings | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | B (0.1%) | B (0.1%) | C (0.01%) | B (0.1%) |
