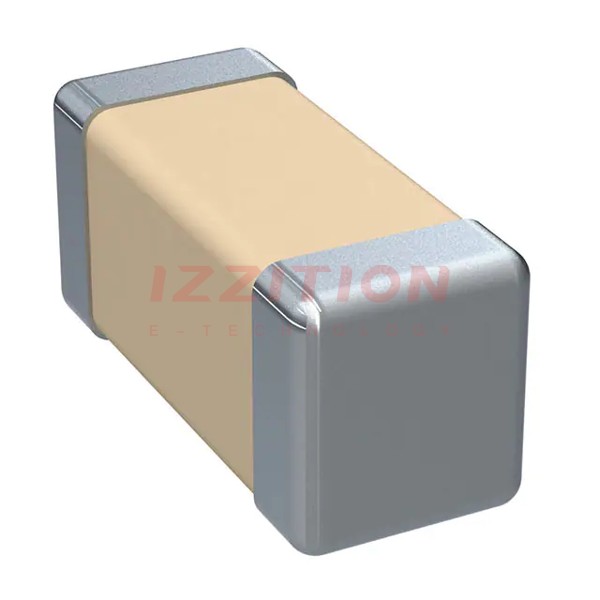

| Part Number | CU02CG1R5C16AH | CU02CG1R0C16AH | CU02CG1R5B16AH |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 1.5 pF | 1 pF | 1.5 pF |
| Tolerance | ±0.25pF | ±0.25pF | ±0.1pF |
| Voltage - Rated | 16V | 16V | 16V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss |
| Ratings | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.009" (0.22mm) | 0.009" (0.22mm) | 0.009" (0.22mm) |
| Lead Spacing | - | - | - |
| Lead Style | - | - | - |
