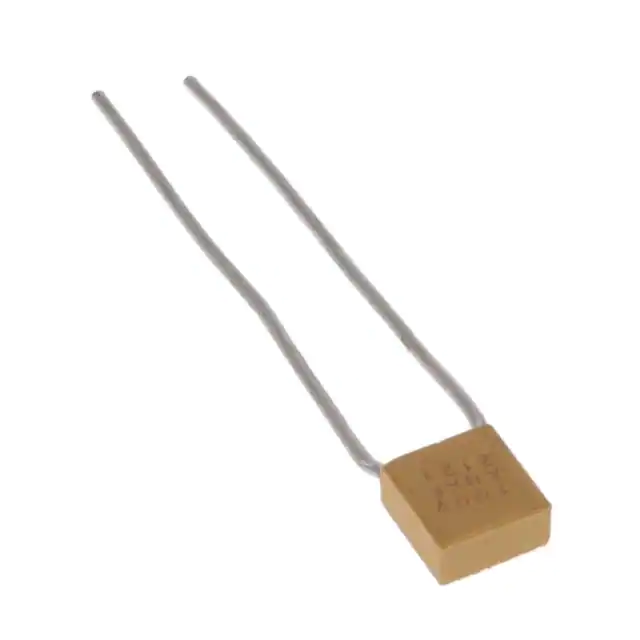

| Part Number | CK05BX103KTR1 | CK05BX104KTR1 | CK05BX102KTR1 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 10000 pF | 0.1 µF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 100V | 50V | 200V |
| Temperature Coefficient | BX | BX | BX |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | High Reliability | High Reliability |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
