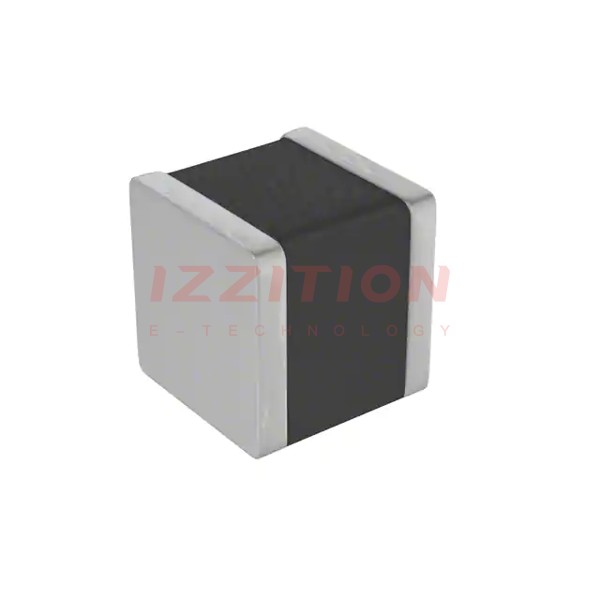

| Part Number | CDR12BG100AFUS | CDR12BG100AFWS | CDR12BG101AFUS | CDR12BG150AFUS | CDR12BP100AFUS | CDR12BG120AFUS | CDR12BG200AFUS |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Capacitance | 10 pF | 10 pF | 100 pF | 15 pF | 10 pF | 12 pF | 20 pF |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | BG | BG | BG | BG | BP | BG | BG |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Applications | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | S (0.001%) | S (0.001%) | S (0.001%) | S (0.001%) | S (0.001%) | S (0.001%) | S (0.001%) |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) |
| Size / Dimension | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Thickness (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - |
