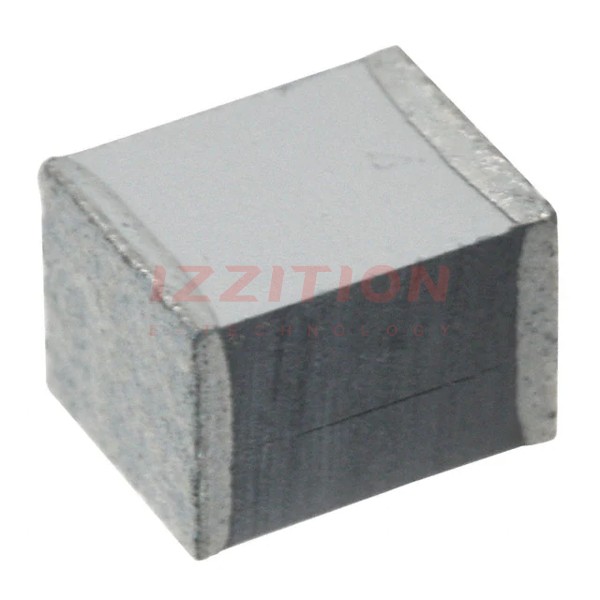

| Part Number | CB052E0105JBC | CB052E0105KBC | CB052D0105JBC |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF |
| Tolerance | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 63V | 63V | 40V |
| Voltage Rating - DC | 100V | 100V | 63V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2824 (7260 Metric) | Nonstandard SMD | 2824 (7260 Metric) |
| Size / Dimension | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.283" L x 0.240" W (7.20mm x 6.10mm) |
| Height - Seated (Max) | 0.224" (5.70mm) | 0.224" (5.70mm) | 0.146" (3.70mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
