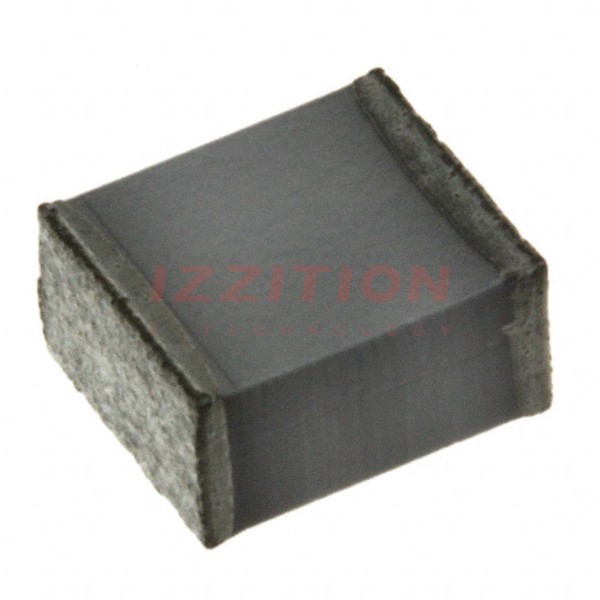

| Part Number | CB042I0103KBC | CB042K0103KBC |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Capacitance | 10000 pF | 10000 pF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 200V | 250V |
| Voltage Rating - DC | 400V | 630V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Size / Dimension | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.228" L x 0.197" W (5.80mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.110" (2.80mm) |
| Termination | Solder Pads | Solder Pads |
| Lead Spacing | - | - |
| Applications | General Purpose | General Purpose |
| Ratings | - | - |
| Features | - | Low ESR |
