Please send RFQ , we will respond immediately.

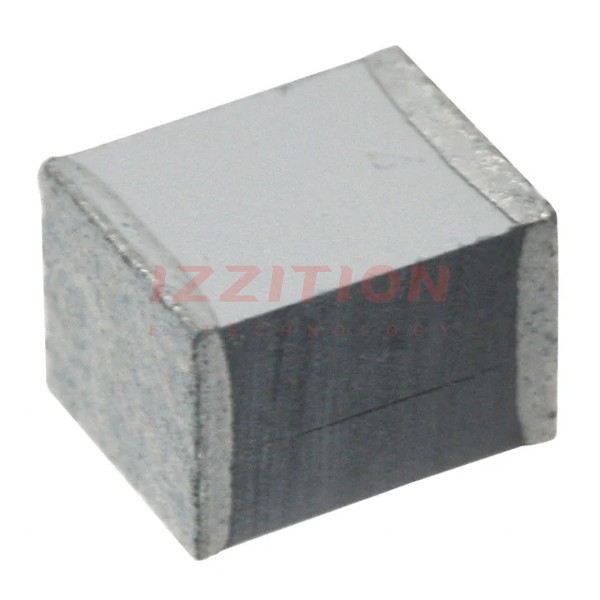

| Part Number | CB027D0473JBA | CB037D0473JBA | CB027C0473JBA |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 40V | 40V | 16V |
| Voltage Rating - DC | 63V | 63V | 25V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1812 (4532 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.130" L x 0.098" W (3.30mm x 2.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.106" (2.70mm) | 0.071" (1.80mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
