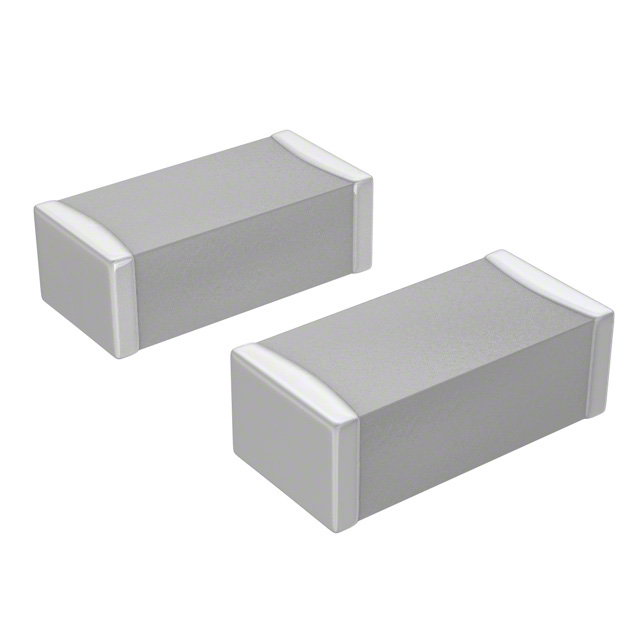

| Part Number | CB017C0222JBA | CB017D0222JBA |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Capacitance | 2200 pF | 2200 pF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 16V | 40V |
| Voltage Rating - DC | 25V | 63V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) |
| Height - Seated (Max) | 0.045" (1.15mm) | 0.045" (1.15mm) |
| Termination | Solder Pads | Solder Pads |
| Lead Spacing | - | - |
| Applications | General Purpose | General Purpose |
| Ratings | - | - |
| Features | - | - |
