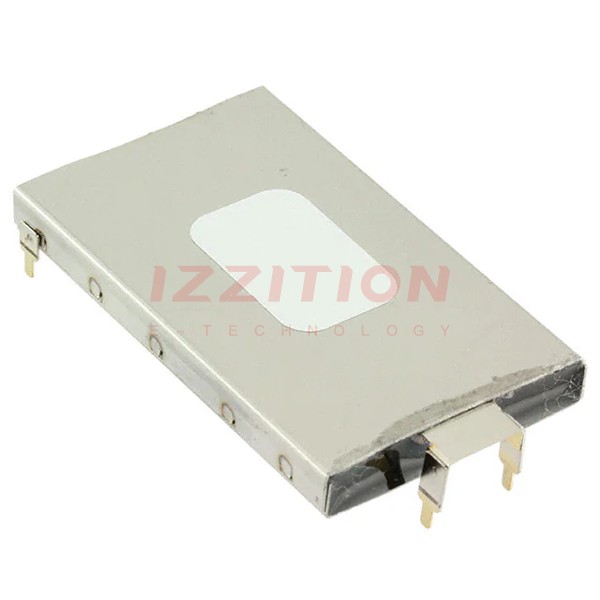

| Part Number | BZ025A404ZAB | BZ025A404ZLB | BZ025A204ZAB |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 400 mF | 400 mF | 200 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 35mOhm | 35mOhm | 60mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C |
| Termination | PC Pins | SMD (SMT) Tabs | PC Pins |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | BZ02, 4 Lead | BZ02, 4 Lead | BZ02, 4 Lead |
| Lead Spacing | - | - | - |
| Size / Dimension | 1.890" L x 1.181" W (48.00mm x 30.00mm) | 1.890" L x 1.181" W (48.00mm x 30.00mm) | 1.890" L x 1.181" W (48.00mm x 30.00mm) |
| Height - Seated (Max) | 0.264" (6.70mm) | 0.272" (6.90mm) | 0.161" (4.10mm) |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
