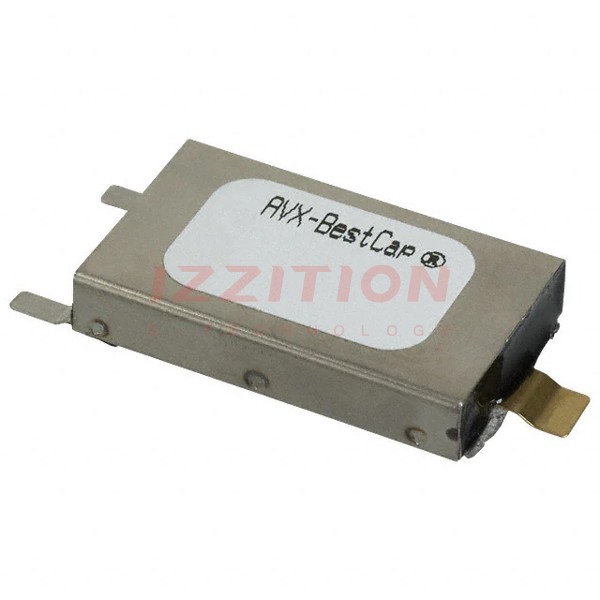

| Part Number | BZ015B603ZSB | BZ015B303ZSB | BZ015B603ZAB |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 60 mF | 30 mF | 60 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 80mOhm | 160mOhm | 96mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C |
| Termination | SMD (SMT) Tabs | SMD (SMT) Tabs | PC Pins |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |
| Package / Case | BZ01, 3 Lead | BZ01, 3 Lead | BZ01, 4 Lead |
| Lead Spacing | - | - | - |
| Size / Dimension | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 1.102" L x 0.669" W (28.00mm x 17.00mm) |
| Height - Seated (Max) | 0.232" (5.90mm) | 0.150" (3.80mm) | 0.213" (5.40mm) |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
