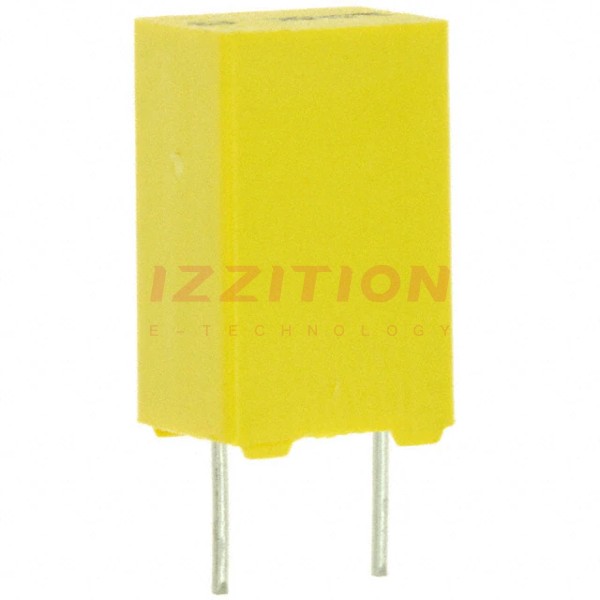

| Part Number | BQ014D0103J | BQ014D0103K | BQ014D0104J | BQ014D0123J | BQ014D0153J | BQ014D0183J | BQ014E0103J | BQ014G0103J | BQ014D0102J |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 10000 pF | 10000 pF | 0.1 µF | 0.012 µF | 0.015 µF | 0.018 µF | 10000 pF | 10000 pF | 1000 pF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 40V | 40V | 40V | 40V | 40V | 40V | 63V | 160V | 40V |
| Voltage Rating - DC | 63V | 63V | 63V | 63V | 63V | 63V | 100V | 250V | 63V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) | 0.295" L x 0.098" W (7.50mm x 2.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
