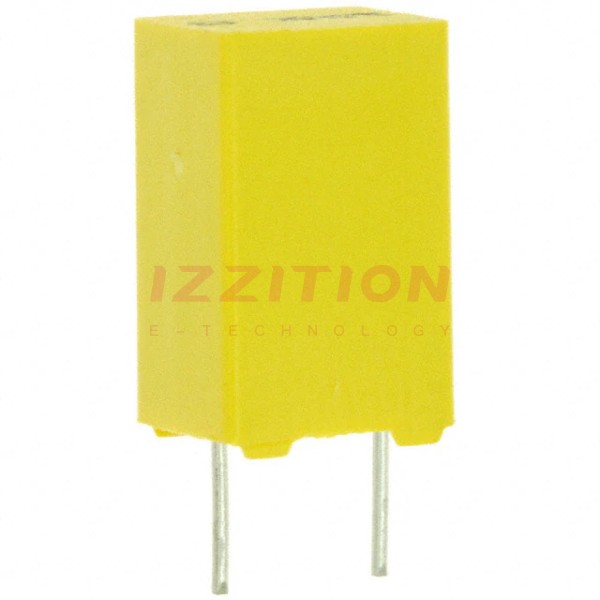

KYOCERA AVX-BH014D0224KDD - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.22 µF
Tolerance:	±10%
Voltage Rating - AC:	40V
Voltage Rating - DC:	63V
Dielectric Material:	Polyester, Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.295" L x 0.098" W (7.50mm x 2.50mm)
Height - Seated (Max):	0.256" (6.50mm)
Termination:	PC Pins
Lead Spacing:	0.200" (5.08mm)
Applications:	General Purpose
Ratings:	-
Features:	-

KYOCERA AVX BH014D0224KDD
