Please send RFQ , we will respond immediately.

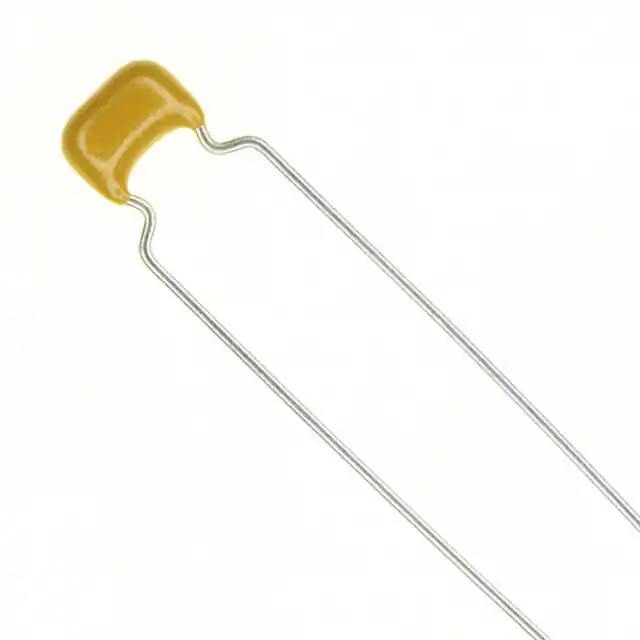

| Part Number | AR215F102K4R | AR215F103K4R | AR215F104K4R | AR205F102K4R | AR215A102K4R | AR215C102K4R |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 10000 pF | 0.1 µF | 1000 pF | 1000 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | X8R | X8R | X8R | X8R | C0G, NP0 | X7R |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.100" (2.54mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked | Straight | Formed Leads - Kinked | Formed Leads - Kinked |
