Please send RFQ , we will respond immediately.

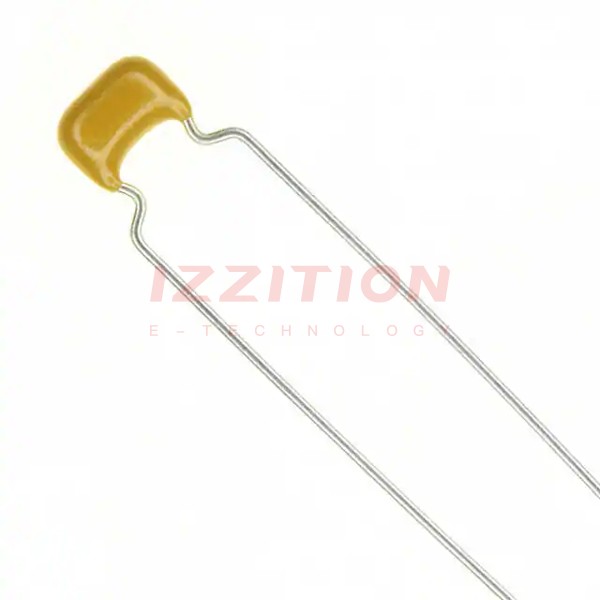

| Part Number | AR212A221J4R | AR212A220J4R |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Capacitance | 220 pF | 22 pF |
| Tolerance | ±5% | ±5% |
| Voltage - Rated | 200V | 200V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked |
