Please send RFQ , we will respond immediately.

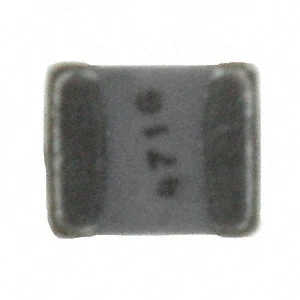

| Part Number | AQ125A102KAJME | AQ125A102KAJRE | AQ125A102KAJWE | AQ125A102KATME | AQ125A102MAJME | AQ125A100KAJME | AQ125A102FAJME | AQ125A102GAJME | AQ125A102JAJME | AQ125A102KAJBE |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 10 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% | ±1% | ±2% | ±5% | ±10% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | A | A | A | A | A | A | A | A | A | A |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 175°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) |
| Size / Dimension | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - |
