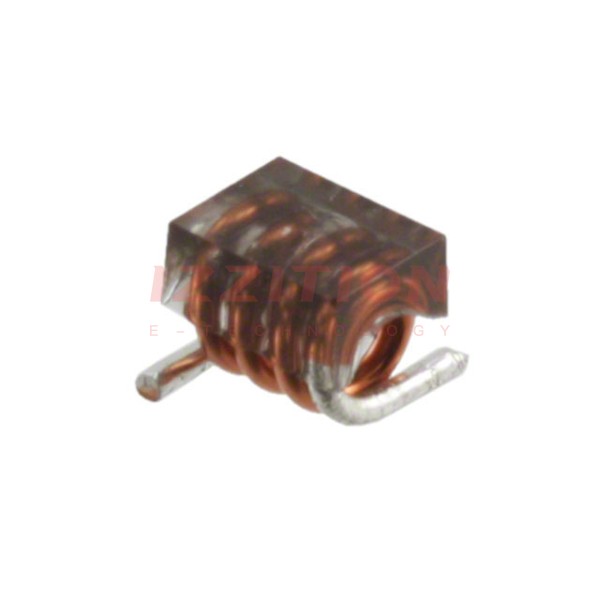

| Part Number | AL12A12N5JTR | AL12A12N5GTR |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Air | Air |
| Inductance | 12.5 nH | 12.5 nH |
| Tolerance | ±5% | ±2% |
| Current Rating (Amps) | 4 A | 4 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.4mOhm Max | 3.4mOhm Max |
| Q @ Freq | 137 @ 150MHz | 137 @ 150MHz |
| Frequency - Self Resonant | 3.3GHz | 3.3GHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz | 150 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Height - Seated (Max) | 0.125" (3.18mm) | 0.125" (3.18mm) |
