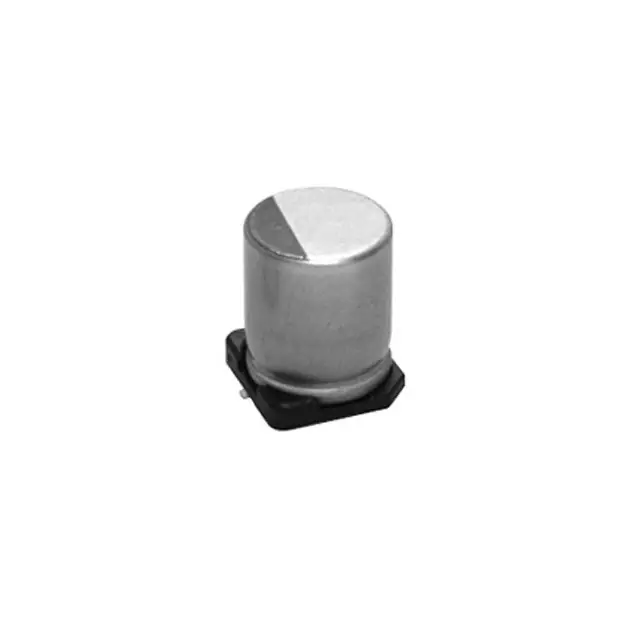

KYOCERA AVX-AEH1010331M025R - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Related Product By Categories

$SQCB7M120JATME\500$

Capacitance:	330 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	148 mA @ 120 Hz
Ripple Current @ High Frequency:	296 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.433" (11.00mm)
Surface Mount Land Size:	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
