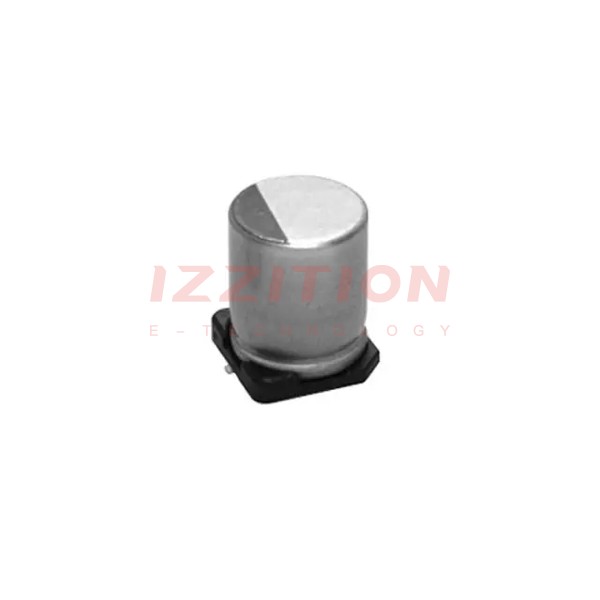

KYOCERA AVX-AEA1010221M050R - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Related Product By Categories

$AQ12EM680JAJME\250V$

$SQCB7M680JATME\500$

Capacitance:	220 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	402 mA @ 120 Hz
Ripple Current @ High Frequency:	670 mA @ 100 kHz
Impedance:	180 mOhms
Lead Spacing:	-
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.413" (10.50mm)
Surface Mount Land Size:	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
