Please send RFQ , we will respond immediately.

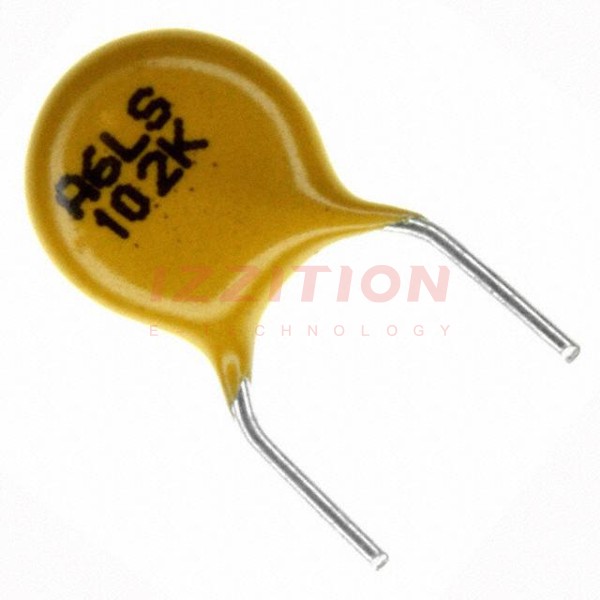

| Part Number | 6LS102KEHCA | 6LS102KRHCA | 6LS102KBHCA | 6LS102KEGCA |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1000 pF | 1000 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Temperature Coefficient | Y5P (B) | Y5P (B) | Y5P (B) | Y5P (B) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.236" (6.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.236" (6.00mm) |
| Lead Style | Straight | Formed Leads - Kinked | Straight | Straight |
