Please send RFQ , we will respond immediately.

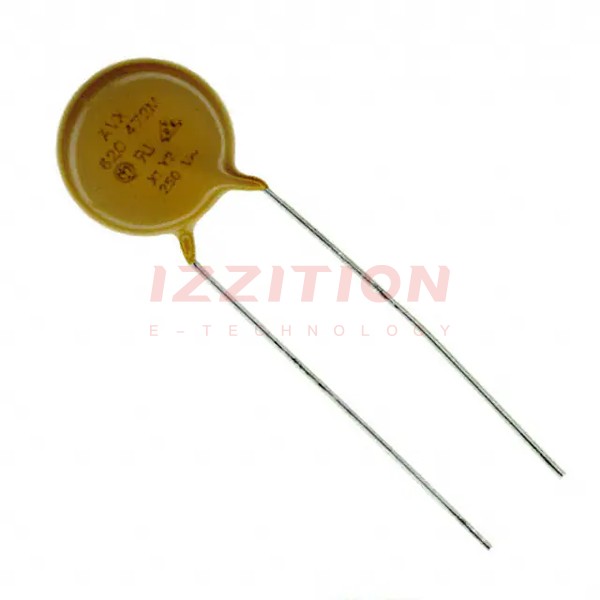

| Part Number | 62O472MPKCA | 62O472MBKCA | 62O472MCKCA |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 4700 pF | 4700 pF | 4700 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 400VAC | 400VAC | 400VAC |
| Temperature Coefficient | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.591" Dia (15.00mm) | 0.591" Dia (15.00mm) | 0.591" Dia (15.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.492" (12.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) |
| Lead Style | Straight | Straight | Straight |
