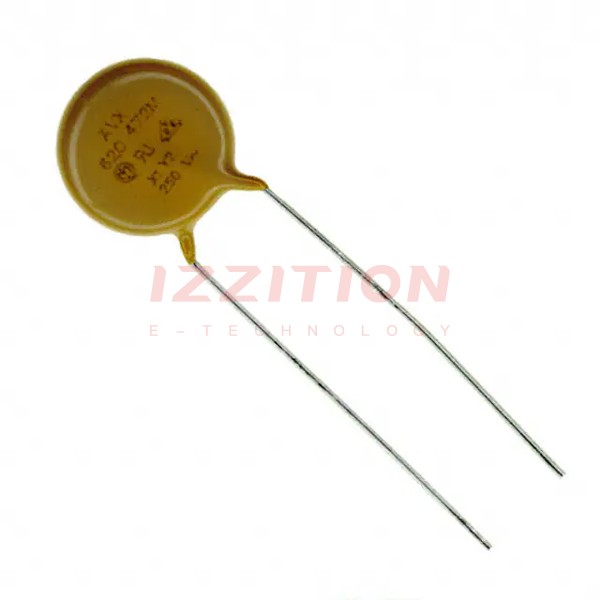

| Part Number | 5SS103MCKCA | 5SS103SCKCA | 5SS103MBKCA |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±20% | -20%, +50% | ±20% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Temperature Coefficient | Y5U (E) | Y5U (E) | Y5U (E) |
| Operating Temperature | -30°C ~ 125°C | -30°C ~ 125°C | -30°C ~ 125°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.591" Dia (15.00mm) | 0.591" Dia (15.00mm) | 0.591" Dia (15.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Lead Style | Straight | Straight | Straight |
