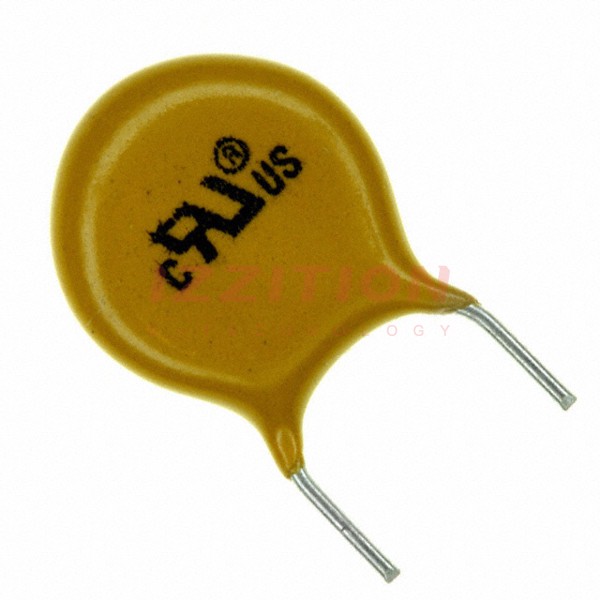

| Part Number | 5SR103MCJCA | 5SR103MCJLA | 5SR103MCJSA | 5SR103MEJCA | 5TR103MCJCA | 5SR103MBJCA |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | Y5U (E) | Y5U (E) | Y5U (E) | Y5U (E) | Y5V (F) | Y5U (E) |
| Operating Temperature | -30°C ~ 125°C | -30°C ~ 85°C | -30°C ~ 125°C | -30°C ~ 125°C | -30°C ~ 125°C | -30°C ~ 125°C |
| Features | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.236" (6.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight |
