Please send RFQ , we will respond immediately.

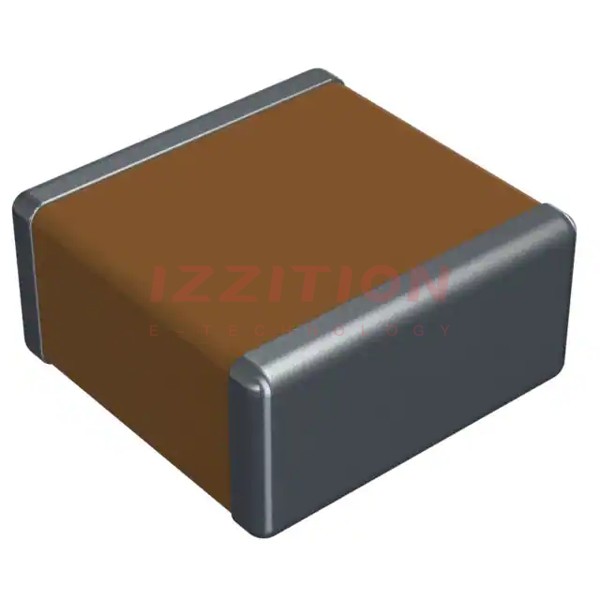

| Part Number | 2225AC104KAT2A | 2225AC104KAZ2A | 2225AC104KAT3A | 2225AC104KAT9A | 22255C104KAT2A | 22257C104KAT2A | 2225AC104KAT1A |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 50V | 500V | 1000V (1kV) |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Voltage | Soft Termination, High Voltage | High Voltage | High Voltage | - | - | High Voltage |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | Boardflex Sensitive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) |
| Size / Dimension | 0.224" L x 0.248" W (5.70mm x 6.30mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Thickness (Max) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - |
