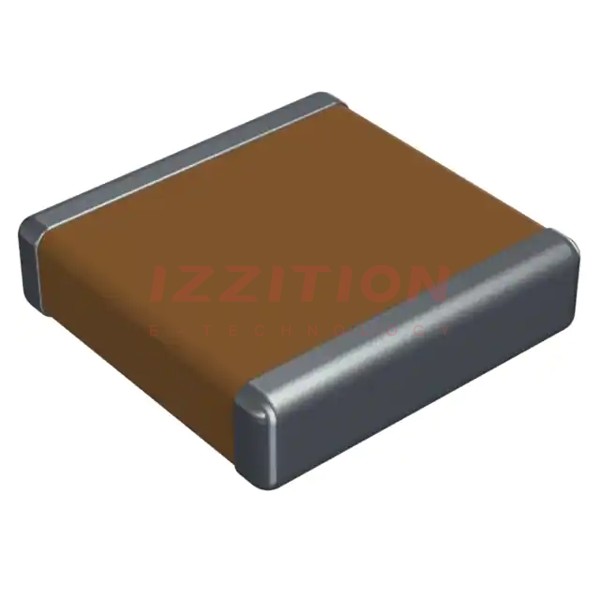

| Part Number | 22255C225KAT2A | 22255C225MAT2A | 22253C225KAT2A | 22255C223KAT2A | 22255C224KAT2A | 22255C225JAT2A | 22255C225KAJ2A |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 0.022 µF | 0.22 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage - Rated | 50V | 50V | 25V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) |
| Size / Dimension | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | 0.225" L x 0.250" W (5.72mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Thickness (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.050" (1.27mm) | 0.060" (1.52mm) | 0.050" (1.27mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - |
