Please send RFQ , we will respond immediately.

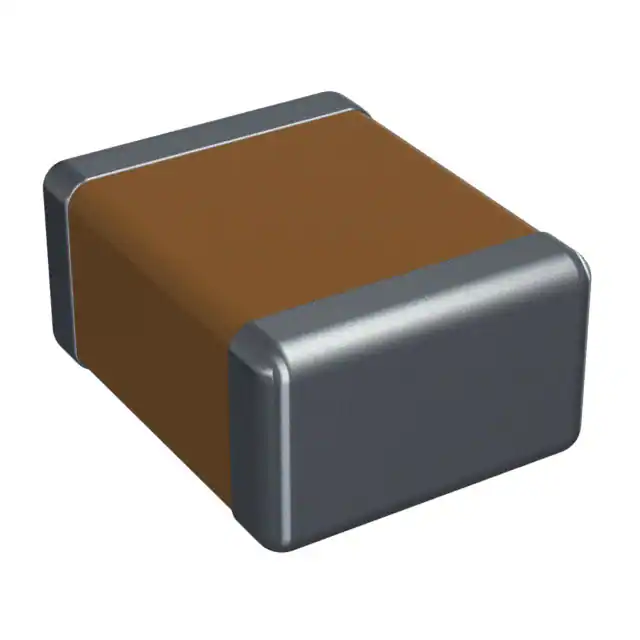

| Part Number | 12103C824KAT2A | 12103C824KAZ2A | 12103C124KAT2A | 12103C224KAT2A | 12103C823KAT2A | 12103C824JAT2A |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.82 µF | 0.82 µF | 0.12 µF | 0.22 µF | 0.082 µF | 0.82 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage - Rated | 25V | 25V | 25V | 25V | 25V | 25V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | Soft Termination | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | Boardflex Sensitive | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.060" (1.52mm) | 0.070" (1.78mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.060" (1.52mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
