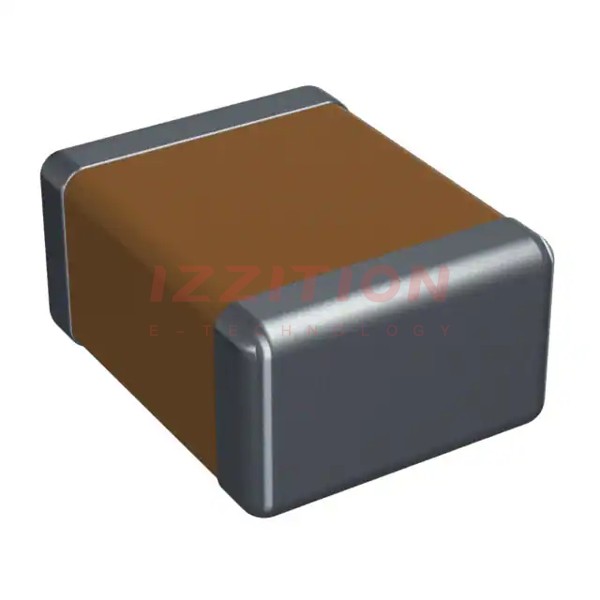

| Part Number | 12103C105KAT2A | 12103C105MAT2A | 12103D105KAT2A | 12103C105KAZ2A | 12103C106KAT2A | 12103C105KAT4A | 12103C155KAT2A | 12103C103KAT2A | 12103C104KAT2A | 12103C105JAT2A | 12103C105KAJ2A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF | 1 µF | 10 µF | 1 µF | 1.5 µF | 10000 pF | 0.1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage - Rated | 25V | 25V | 25V | 25V | 25V | 25V | 25V | 25V | 25V | 25V | 25V |
| Temperature Coefficient | X7R | X7R | X5R | X7R | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | Soft Termination | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | Boardflex Sensitive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.090" (2.29mm) | 0.060" (1.52mm) | 0.110" (2.79mm) | 0.060" (1.52mm) | 0.110" (2.79mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.060" (1.52mm) | 0.060" (1.52mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - | - |
