Please send RFQ , we will respond immediately.

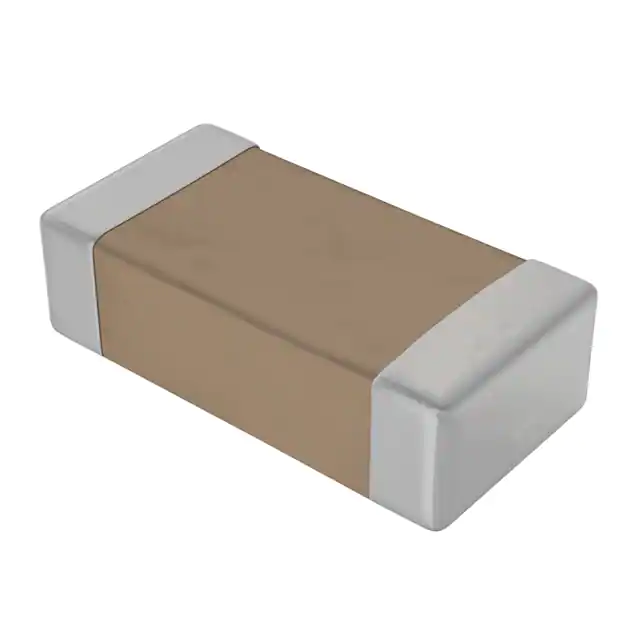

| Part Number | 1206GC471KAT1A | 1206GC471KAZ1A | 1206GC471KAT2A | 1206GC471MAT1A | 1206GC271KAT1A | 1206GC470KAT1A |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 470 pF | 470 pF | 470 pF | 470 pF | 270 pF | 47 pF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Voltage | Soft Termination, High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | SMPS Filtering, Boardflex Sensitive | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
