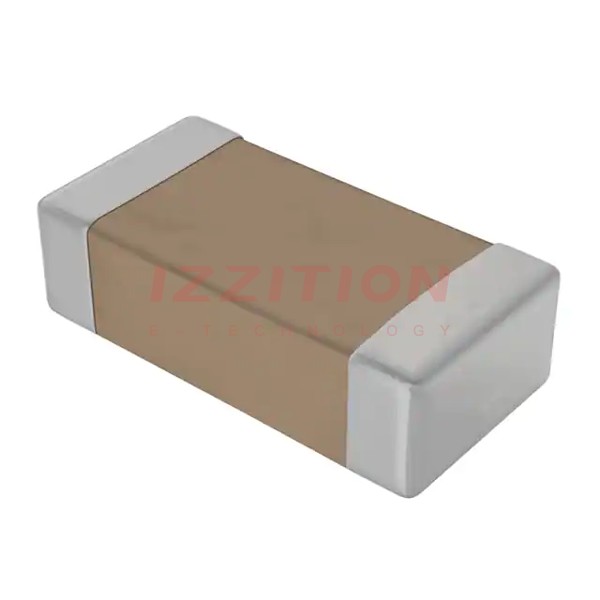

| Part Number | 1206AC222KAT1A | 1206AC222KAT3A | 1206AC222KAZ1A | 1206AC222KAT2A | 1206AC272KAT1A | 1206AC220KAT1A | 1206AC221KAT1A | 1206AC222JAT1A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2200 pF | 2200 pF | 2200 pF | 2200 pF | 2700 pF | 22 pF | 220 pF | 2200 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Voltage | High Voltage | Soft Termination, High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | SMPS Filtering, Boardflex Sensitive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - |
