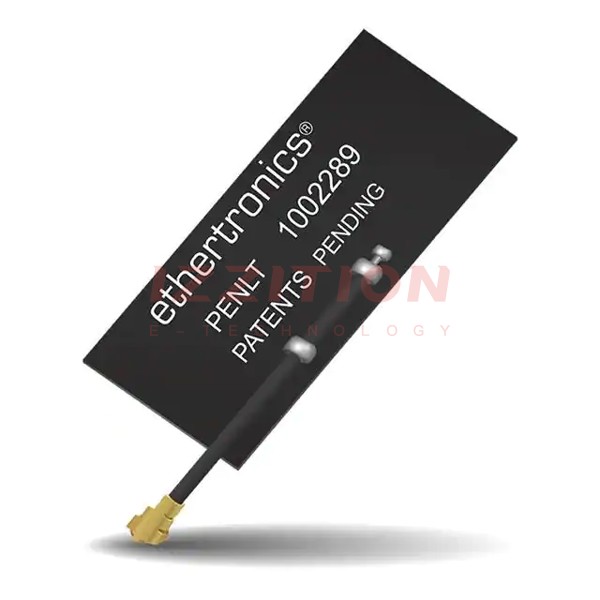

| Part Number | 1002289F0-AA10L0150 | 1002289F0-AA10L0050 | 1002289F0-AA10L0100 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | Ethertronics/AVX |
| Product Status | Active | Active | Active |
| RF Family/Standard | Cellular | Cellular | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | Wide Band |
| Frequency (Center/Band) | 829MHz, 2.2GHz | 829MHz, 2.2GHz | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz |
| Antenna Type | PCB Trace | PCB Trace | Flat Patch |
| Number of Bands | 2 | 2 | 8 |
| VSWR | 2.5 | 2.5 | 2.5 |
| Return Loss | - | - | - |
| Gain | 2.9dBi, 4.3dBi | 2.9dBi, 4.3dBi | - |
| Power - Max | 2 W | 2 W | 2 W |
| Features | Cable - 150mm | Cable - 50mm | Cable - 100mm |
| Termination | U.FL | U.FL | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.008" (0.20mm) | 0.008" (0.20mm) | 0.049" (1.25mm) |
| Applications | Cellular, LTE-M, NB-IoT, loRa, SigFox | Cellular, LTE-M, NB-IoT, loRa, SigFox | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
