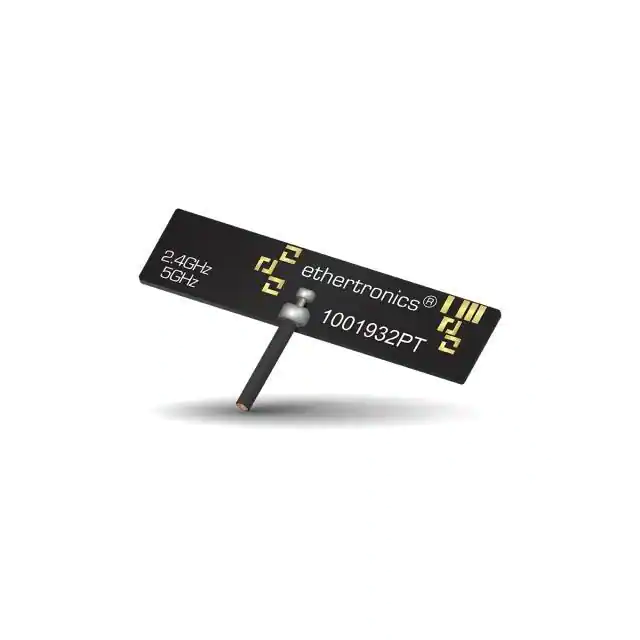

| Part Number | 1001932PT-AA10L0200 | 1001932PT-AC10L0200 | 1001932FT-AA10L0200 | 1001932PT-AA10L0100 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | Ethertronics/AVX | Ethertronics/AVX | Ethertronics/AVX |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| Frequency Range | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 2 | 2 | 2 | 2 |
| VSWR | 2 | 2 | 2 | 2 |
| Return Loss | - | - | - | - |
| Gain | 2.5dBi, 4.4dBi | 2.5dBi, 4.4dBi | 2.5dBi, 4.4dBi | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi |
| Power - Max | 500 mW | 500 mW | 500 mW | - |
| Features | Cable - 200mm | Cable - 200mm | Cable - 200mm | Cable - 100mm |
| Termination | U.FL | MHF | U.FL | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.016" (0.40mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
