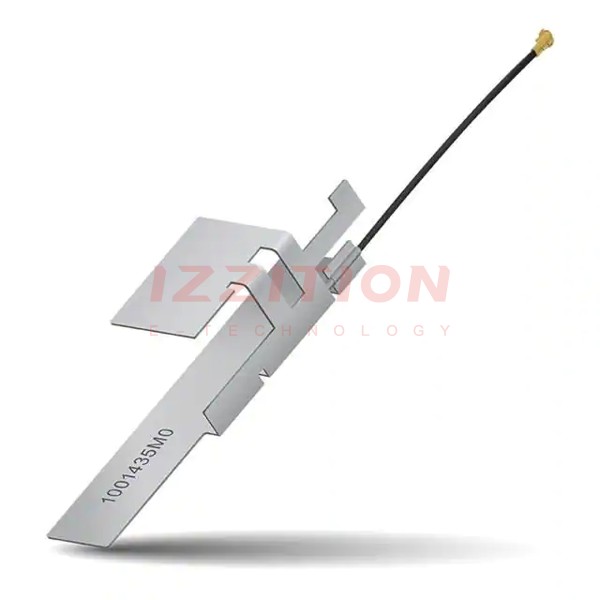

| Part Number | 1001435M0-AA10L0070 | 1001435M0-AA10L0070N |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4425GHz, 5.5GHz | 2.4425GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | Stamped Metal | Stamped Metal |
| Number of Bands | 2 | 2 |
| VSWR | 2 | 2 |
| Return Loss | - | - |
| Gain | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi |
| Power - Max | 500 mW | 500 mW |
| Features | Cable - 70mm | Cable - 70mm |
| Termination | Solder | Solder |
| Ingress Protection | - | - |
| Mounting Type | Adhesive | Surface Mount |
| Height (Max) | 0.382" (9.70mm) | 0.374" (9.50mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
