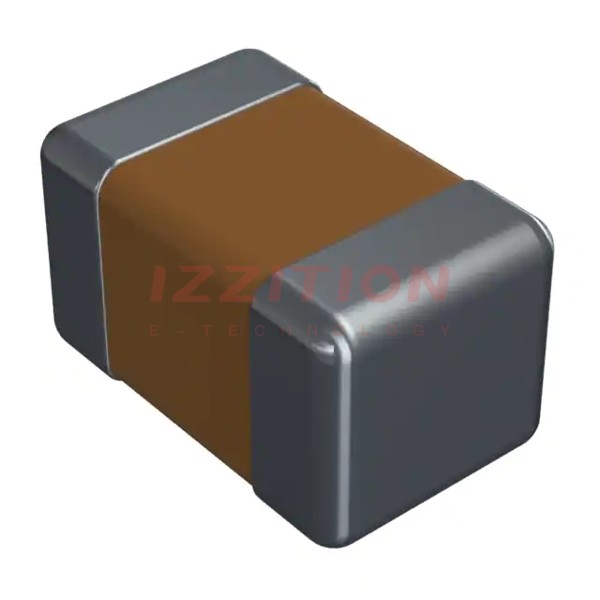

| Part Number | 08055U120GAT2A | 08055U120JAT2A | 08055U121GAT2A | 08055U130GAT2A | 08055U220GAT2A | 08055U620GAT2A | 08055U820GAT2A | 08055U100GAT2A | 08055U110GAT2A | 08055U120FAT2A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 12 pF | 12 pF | 120 pF | 13 pF | 22 pF | 62 pF | 82 pF | 10 pF | 11 pF | 12 pF |
| Tolerance | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - |
