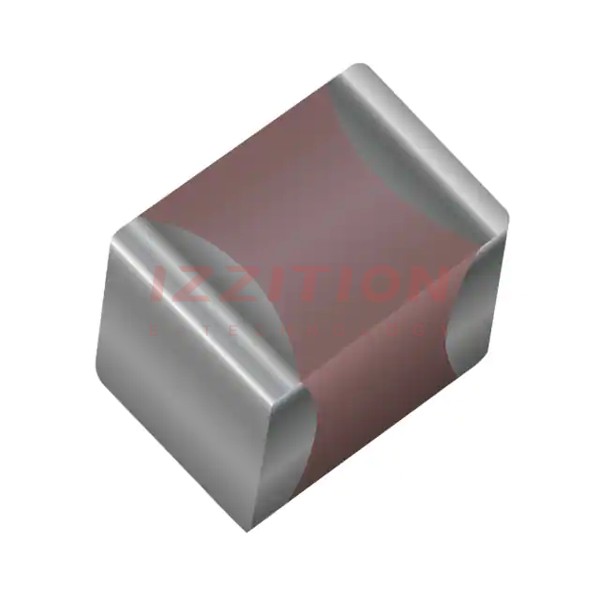

| Part Number | 08055C222KAT4A | 08055C223KAT4A | 08055C272KAT4A | 08055C222MAT4A | 08055C224KAT4A | 08055C222KAZ4A | 08055C221KAT4A | 08055C222JAT4A | 08055C222KAT2A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2200 pF | 0.022 µF | 2700 pF | 2200 pF | 0.22 µF | 2200 pF | 220 pF | 2200 pF | 2200 pF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | Soft Termination | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | Boardflex Sensitive | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.037" (0.94mm) | - | - | 0.037" (0.94mm) | 0.055" (1.40mm) | - | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - |
