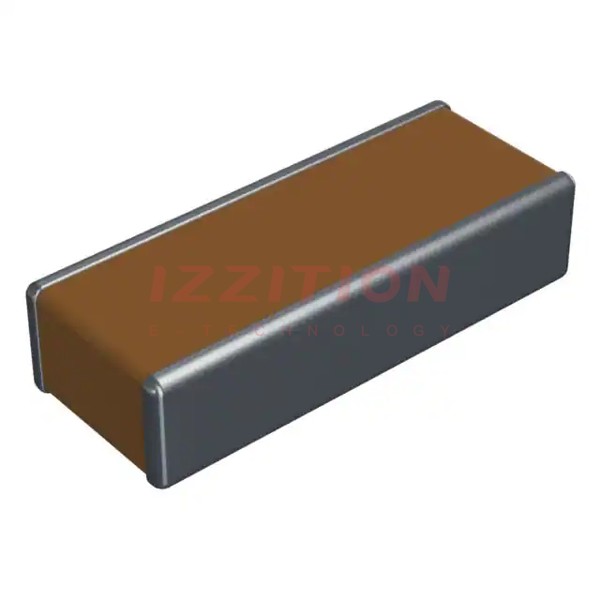

| Part Number | 0612ZD684MAT2V | 0612ZC684MAT2V | 0612ZD684KAT2V |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 0.68 µF | 0.68 µF | 0.68 µF |
| Tolerance | ±20% | ±20% | ±10% |
| Voltage - Rated | 10V | 10V | 10V |
| Temperature Coefficient | X5R | X7R | X5R |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 85°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.030" (0.76mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
| Lead Spacing | - | - | - |
| Lead Style | - | - | - |
