Please send RFQ , we will respond immediately.

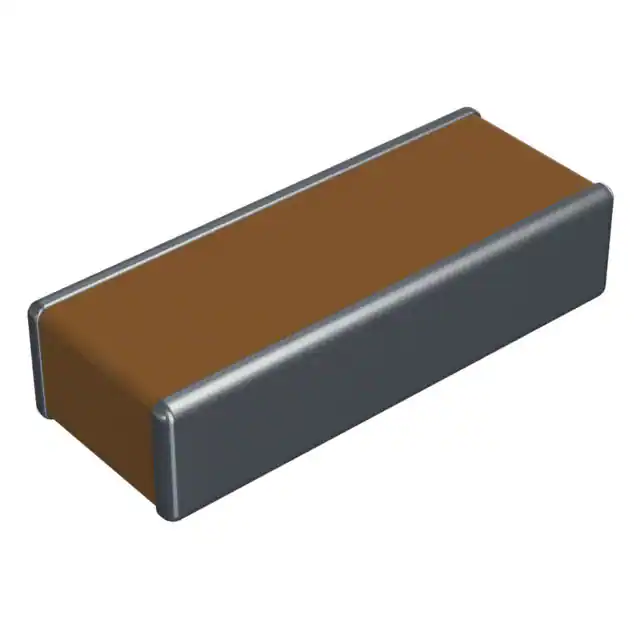

| Part Number | 06123C224KAT2V | 0612YC224KAT2V | 06123C224MAT2V | 06123C224KAT2W | 06123C224KAT2A |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 25V | 16V | 25V | 25V | 25V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) | 0612 (1632 Metric) |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.037" (0.94mm) | 0.040" (1.02mm) | 0.050" (1.27mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
