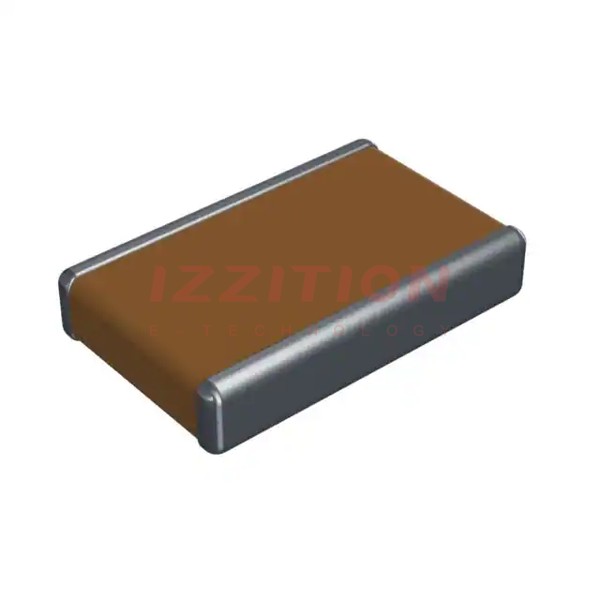

| Part Number | 05083C563MAT2U | 05083C563MAT2V | 05083E563MAT2U | 05083C563KAT2U |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF |
| Tolerance | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 25V | 25V | 25V | 25V |
| Temperature Coefficient | X7R | X7R | Z5U | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | 10°C ~ 85°C | -55°C ~ 125°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.050" L x 0.079" W (1.27mm x 2.00mm) | 0.050" L x 0.079" W (1.27mm x 2.00mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.050" L x 0.079" W (1.27mm x 2.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.016" (0.40mm) | 0.030" (0.76mm) | 0.037" (0.94mm) | 0.016" (0.40mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
