Please send RFQ , we will respond immediately.

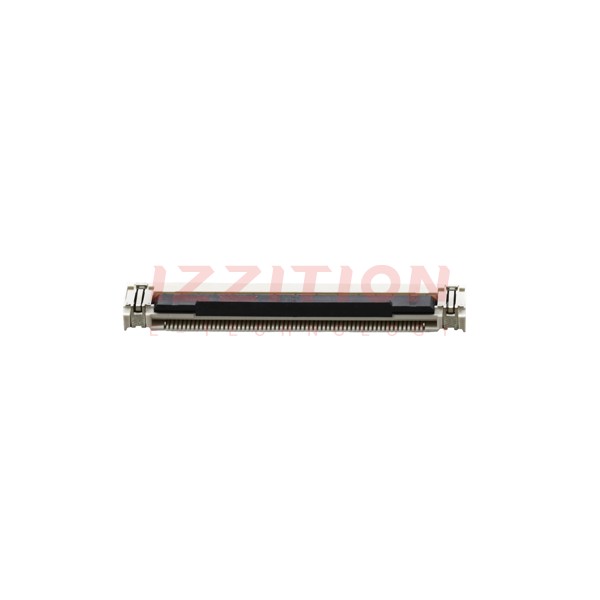

| Part Number | 046810660021846+T | 046810660022846+T | 046810630021846+T | 046810650021846+T | 046810660020846+T |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 60 | 60 | 30 | 50 | 60 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.50mm | 0.30mm | 0.50mm | 0.50mm | 0.50mm |
| Height Above Board | 0.159" (4.04mm) | 0.236" (6.00mm) | 0.159" (4.04mm) | 0.159" (4.04mm) | 0.236" (6.00mm) |
| Locking Feature | - | - | - | - | - |
| Cable End Type | Notched, Tapered | Notched, Tapered | Notched, Tapered | Notched | Notched, Tapered |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Housing Material | Plastic | Plastic | Plastic | Thermoplastic | Plastic |
| Actuator Material | - | - | - | - | - |
| Features | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention |
| Voltage Rating | 50V | 50V | 50V | 50V | 50V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Material Flammability Rating | - | - | - | - | - |
