Please send RFQ , we will respond immediately.

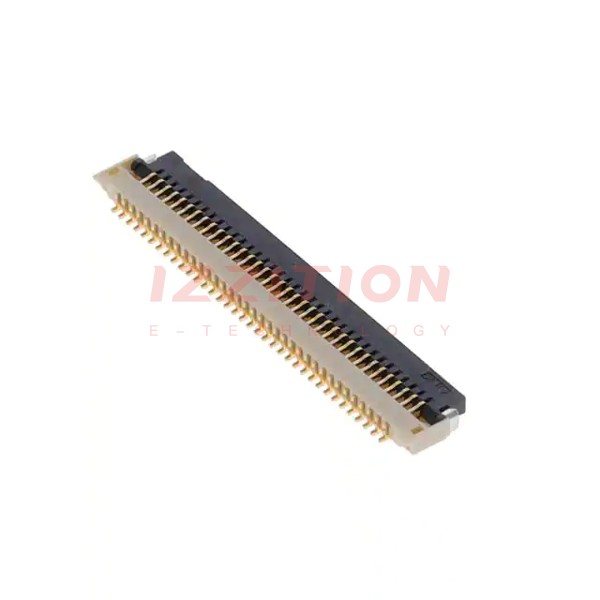

| Part Number | 046809636310846+ | 046809634310846+ |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 36 | 34 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm |
| Height Above Board | 0.037" (0.95mm) | 0.037" (0.95mm) |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Notched | Notched |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold |
| Housing Material | Plastic | Plastic |
| Actuator Material | - | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V | 50V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | - | - |
