Please send RFQ , we will respond immediately.

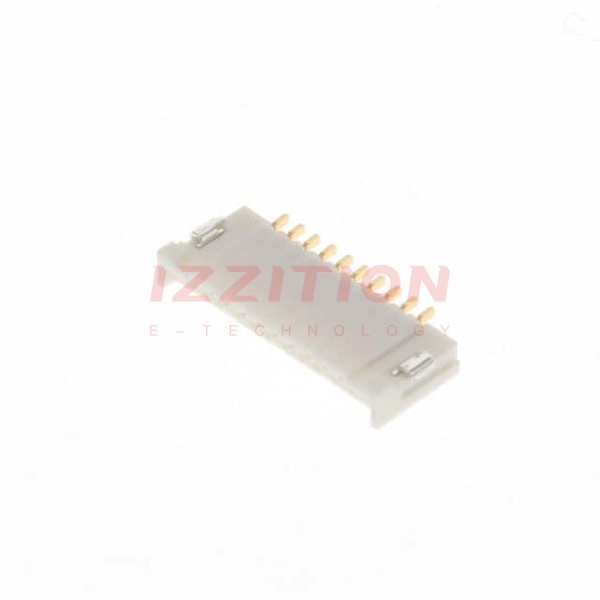

| Part Number | 046227010100829+ | 046227016100829+ | 046227012100829+ |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom | Contacts, Top and Bottom | Contacts, Top and Bottom |
| Number of Positions | 10 | 16 | 12 |
| Pitch | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Locking Feature | - | - | - |
| Cable End Type | Straight | Straight | Straight |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Plastic | Plastic | Plastic |
| Actuator Material | - | - | - |
| Features | Low Insertion Force (LIF), Solder Retention | Low Insertion Force (LIF), Solder Retention | Low Insertion Force (LIF), Solder Retention |
| Voltage Rating | 50V | 50V | 50V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | - | - | - |
