Please send RFQ , we will respond immediately.

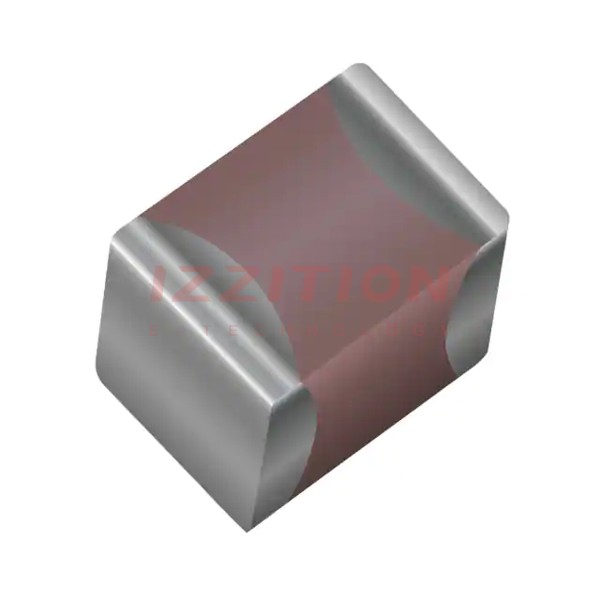

| Part Number | 04025U100BAT2A | 04025U100FAT2A | 04025U100CAT2A | 04025U100JAT2A | 04025U100GAT2A | 04025U1R0BAT2A |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | - | 10 pF | 10 pF | 10 pF | 10 pF | 1 pF |
| Tolerance | - | ±1% | ±0.25pF | ±5% | ±2% | ±0.1pF |
| Voltage - Rated | - | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | - | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR | Ultra Low ESR |
| Ratings | - | - | - | - | - | - |
| Applications | - | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | - | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | - | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | - | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.022" (0.55mm) | 0.024" (0.60mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
