Please send RFQ , we will respond immediately.

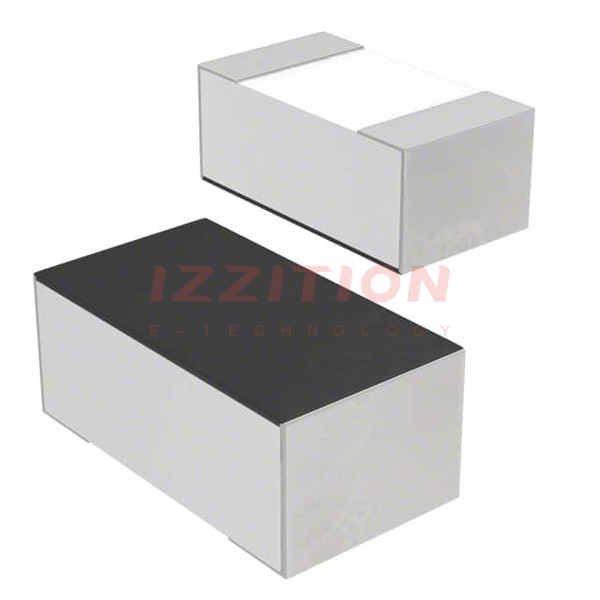

| Part Number | 04023J3R3ABSTR | 04023J3R3BBSTR | 04023J3R9ABSTR | 04023J3R3ABWTR | 04023J3R0ABSTR |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 3.3 pF | 3.3 pF | 3.9 pF | 3.3 pF | 3 pF |
| Tolerance | ±0.05pF | ±0.1pF | ±0.5pF | ±0.05pF | ±0.05pF |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 25 V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.016" (0.40mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
