Please send RFQ , we will respond immediately.

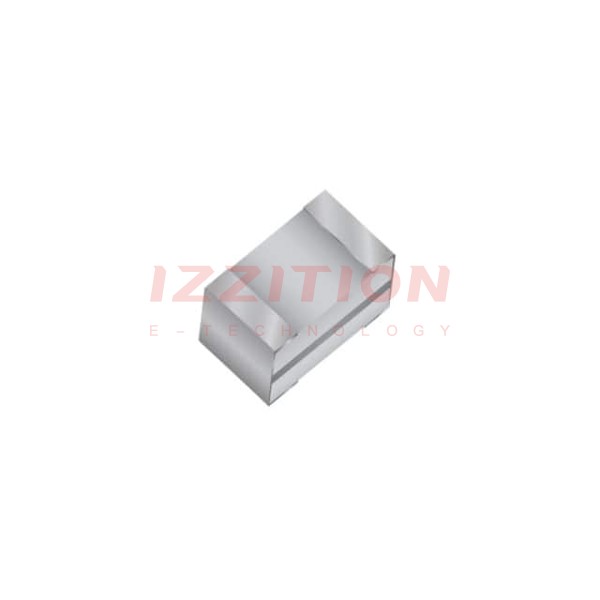

| Part Number | 04023J1R1PBSTR | 04023J1R5PBSTR | 04023J1R8PBSTR | 04023J1R7PBSTR | 04023J0R1PBSTR | 04023J1R0PBSTR | 04023J1R1ABSTR | 04023J1R1BBSTR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.1 pF | 1.5 pF | 1.8 pF | 1.7 pF | 0.1 pF | 1 pF | 1.1 pF | 1.1 pF |
| Tolerance | ±0.02pF | ±0.02pF | ±0.02pF | ±0.02pF | ±0.02pF | ±0.02pF | ±0.05pF | ±0.1pF |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
