Please send RFQ , we will respond immediately.

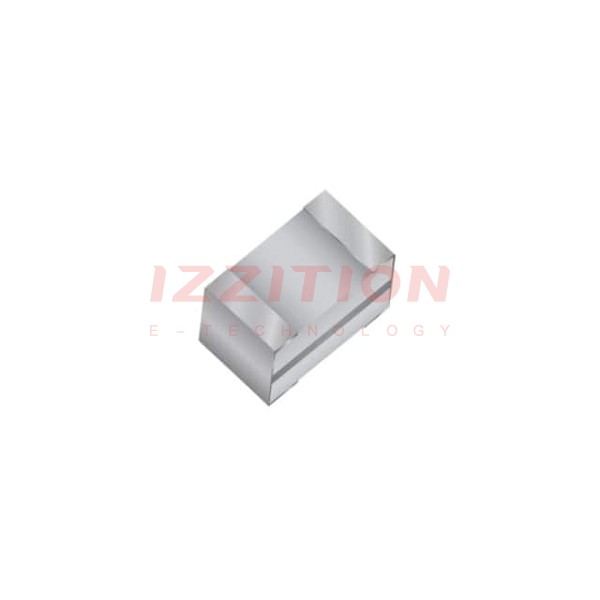

| Part Number | 04023J0R2ABSTR | 04023J0R2PBSTR | 04023J0R7ABSTR | 04023J0R5ABSTR | 04023J1R2ABSTR | 04023J0R4ABSTR | 04023J0R8ABSTR | 04023J0R6ABSTR | 04023J0R2ZBSTR | 04023J0R9ABSTR | 04023J0R2BBSTR | 04023J0R2ABWTR | 04023J0R1ABSTR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.2 pF | 0.2 pF | 0.7 pF | 0.5 pF | 1.2 pF | 0.4 pF | 0.8 pF | 0.6 pF | 0.2 pF | 0.9 pF | 0.2 pF | 0.2 pF | 0.1 pF |
| Tolerance | ±0.05pF | ±0.02pF | ±0.05pF | ±0.05pF | ±0.05pF | ±0.05pF | ±0.05pF | ±0.05pF | ±0.01pF | ±0.05pF | ±0.1pF | ±0.05pF | ±0.05pF |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss | RF, High Q, Low Loss |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.016" (0.40mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
